A Chicagoan Oval Hole with a Unique Vibe

This Chicagoan Oval hole was  fun to work on. One of my biggest critics (my wife!) says it’s her favorite guitar that I’ve made so far. The ebony binding against the lightly stained natural body wood provides such a beautiful contrast. The x-braced Carpathian top features an oval sound hole that is bound with a fine mother of pearl ring and the same purfling lines that outline the body. All the appointments here are carved from Macassar Ebony which help give it a beautiful warmth both visually and aurally. In mid-2019 I added a Barbera Saddle pickup as well as a fingerrest with a stealth volume control to give this instrument a lot more versatility for its owner. Here are the guitar’s specs:



2015 Chicagoan Oval hole

  • Select Romanian (Carpathian) spruce top
  • Select Romanian Maple back and sides
  • Cutaway
  • X-braced
  • Flame maple laminated neck with bone nut width of 1.75″ , C Shape profile (.8375” @3rd fret)
  • Macassar Ebony fingerboard with scale length 25″
  • Ebony headstock face veneer
  • Macassar Ebony veneer on rear of headstock
  • Macassar Ebony heal cap
  • Macassar Ebony bindings
  • Medium jumbo frets
  • Tab fingerboard inlays
  • Personal rear headstock inlay, “espresso art”
  • Ebony bound rossette ring with Mother of pearl detail
  • Waverly tuners, nickel, with ebony buttons
  • Hand cut compensated, ebony adjustable bridge and fittings
  • Finish, gloss lacquer, matte-rubbed finish on neck
  • Barbera Saddle Pickup with volume under fingerest
  • Custom fit Hoffee carbon fiber case









046 Series

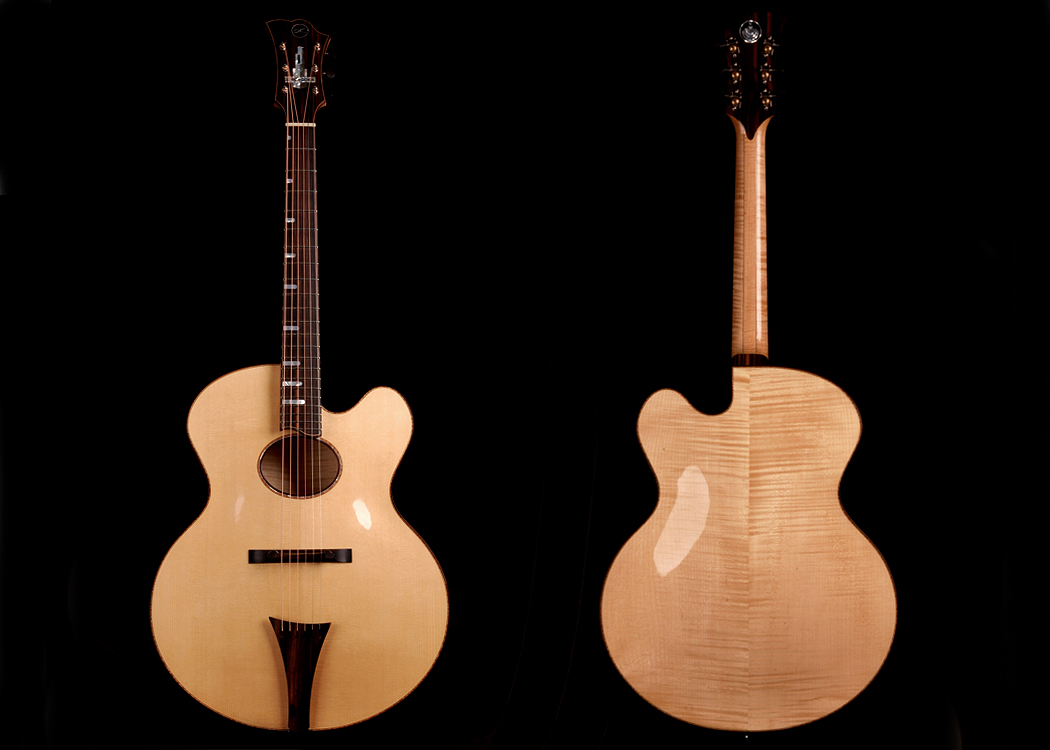

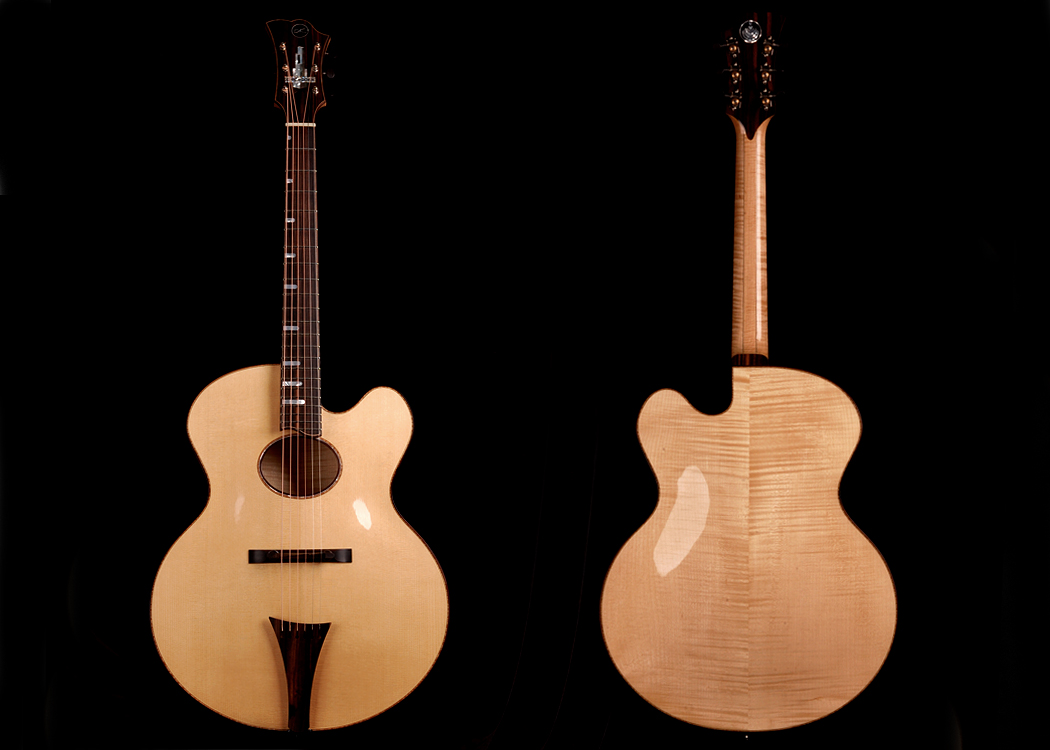

Koentopp Chicagoan Front and Back





DSC_0025

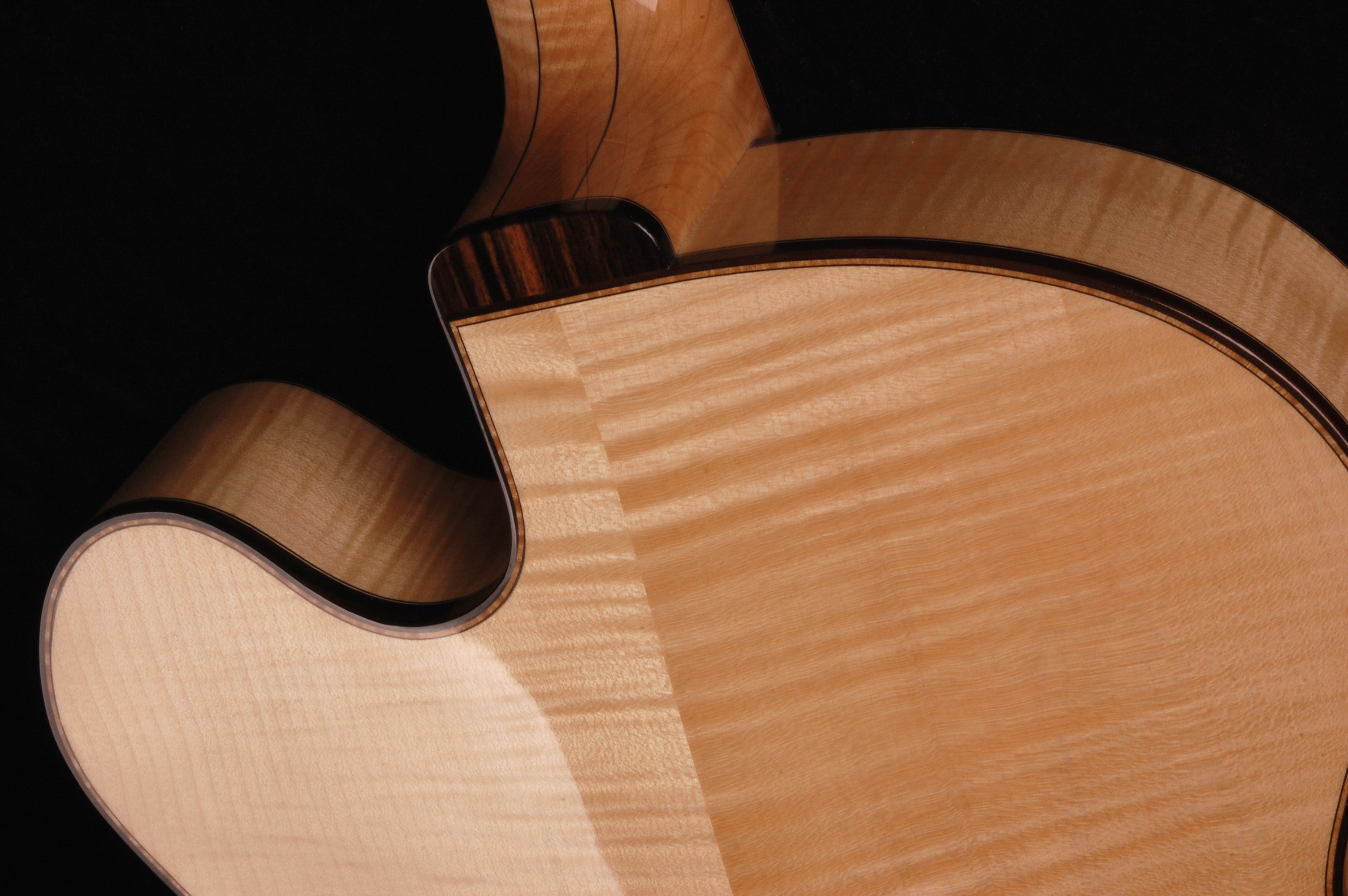

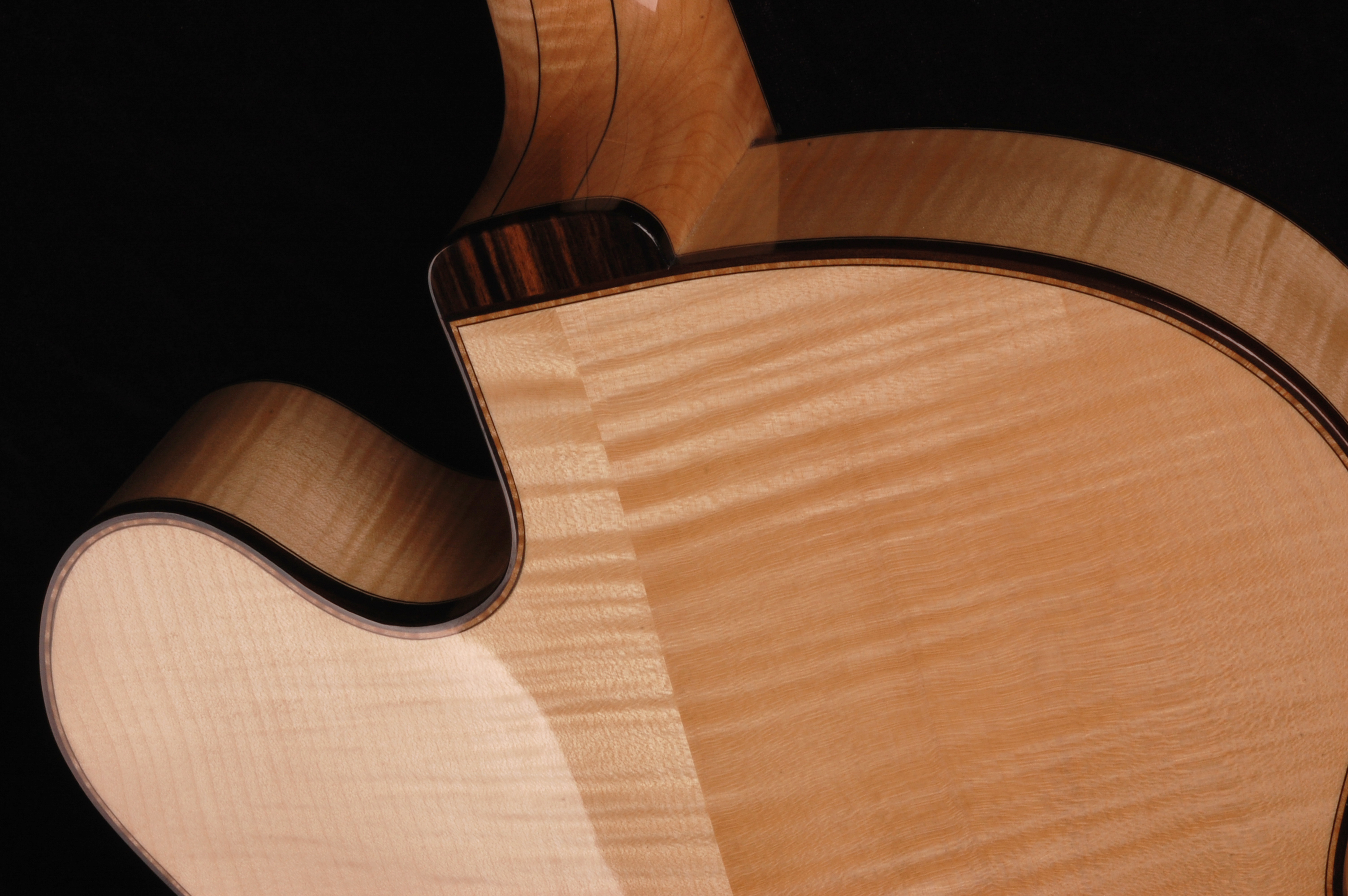

Heel with Macassar Ebony cap





DSC_0029

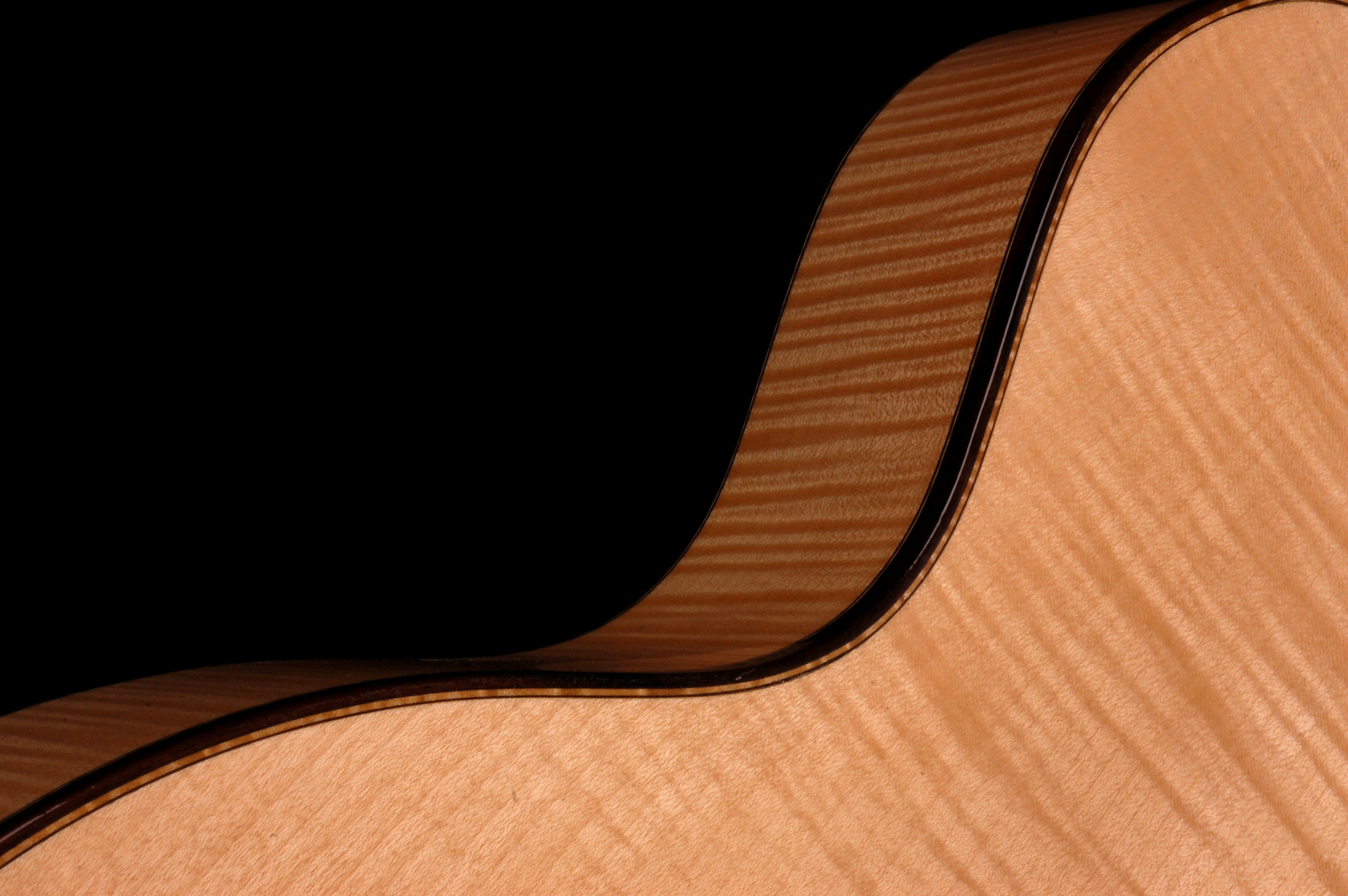

Purfling detail





DSC_0038

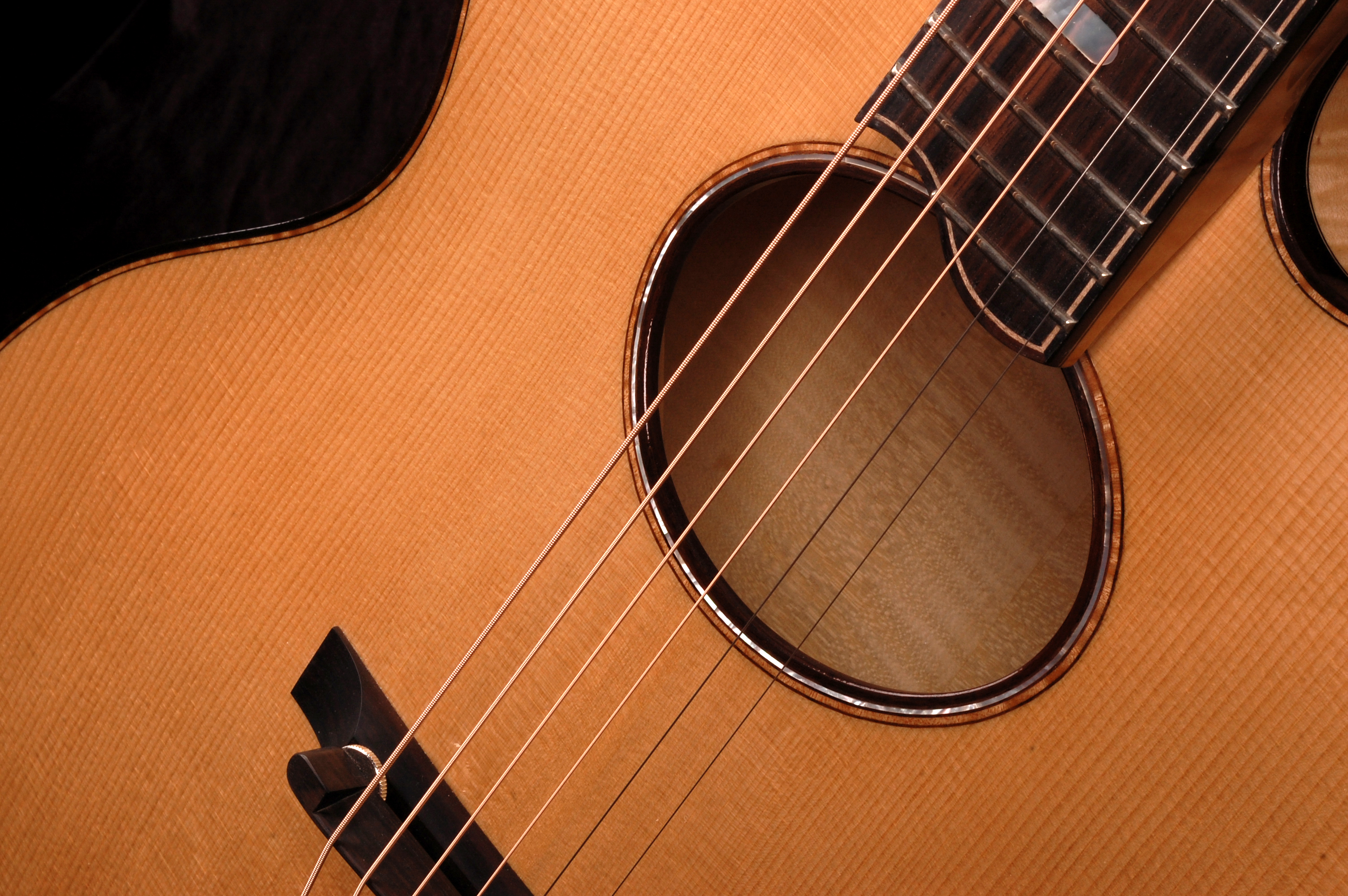

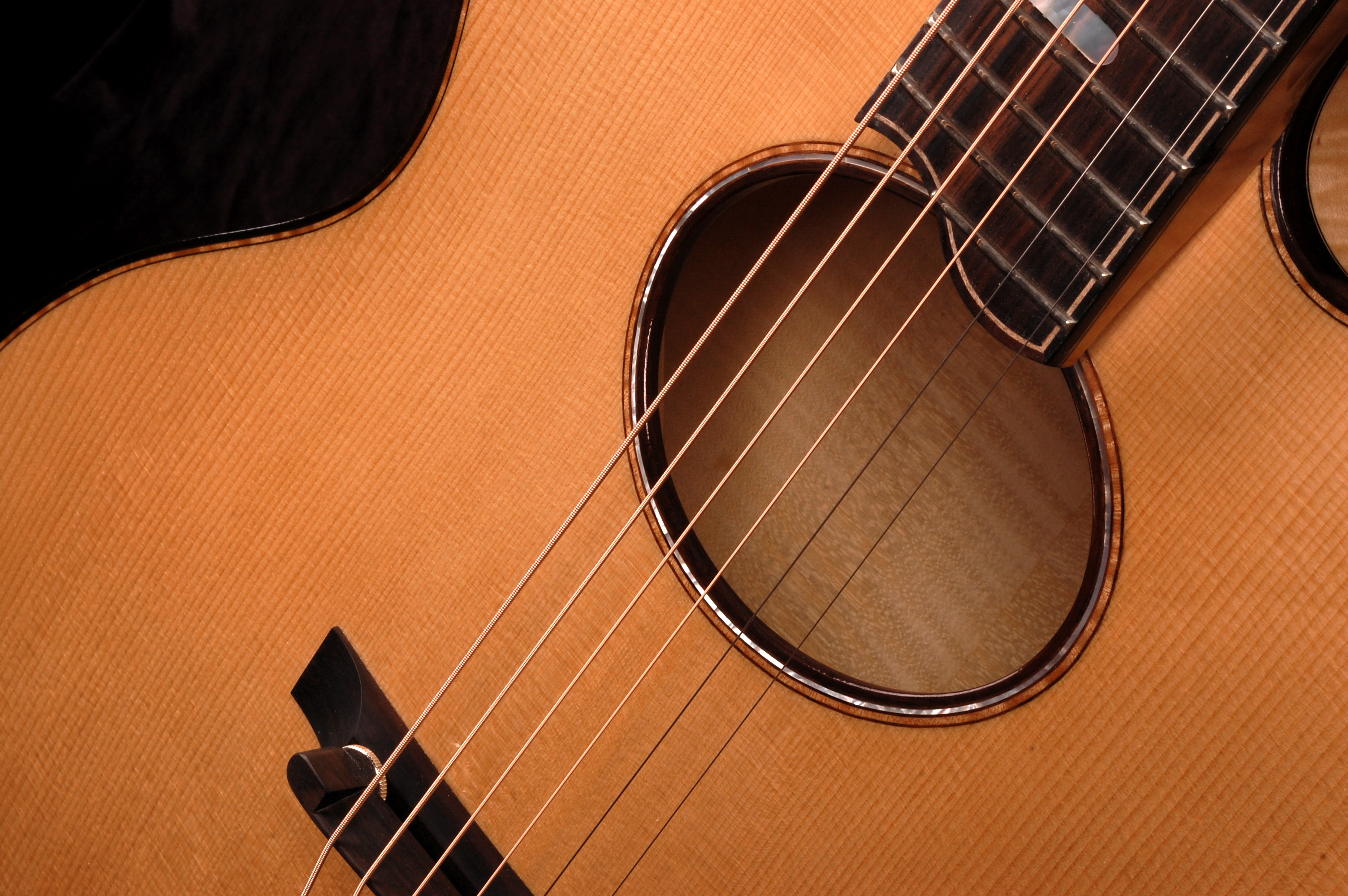

Rosette and Spruce top





DSC_0051

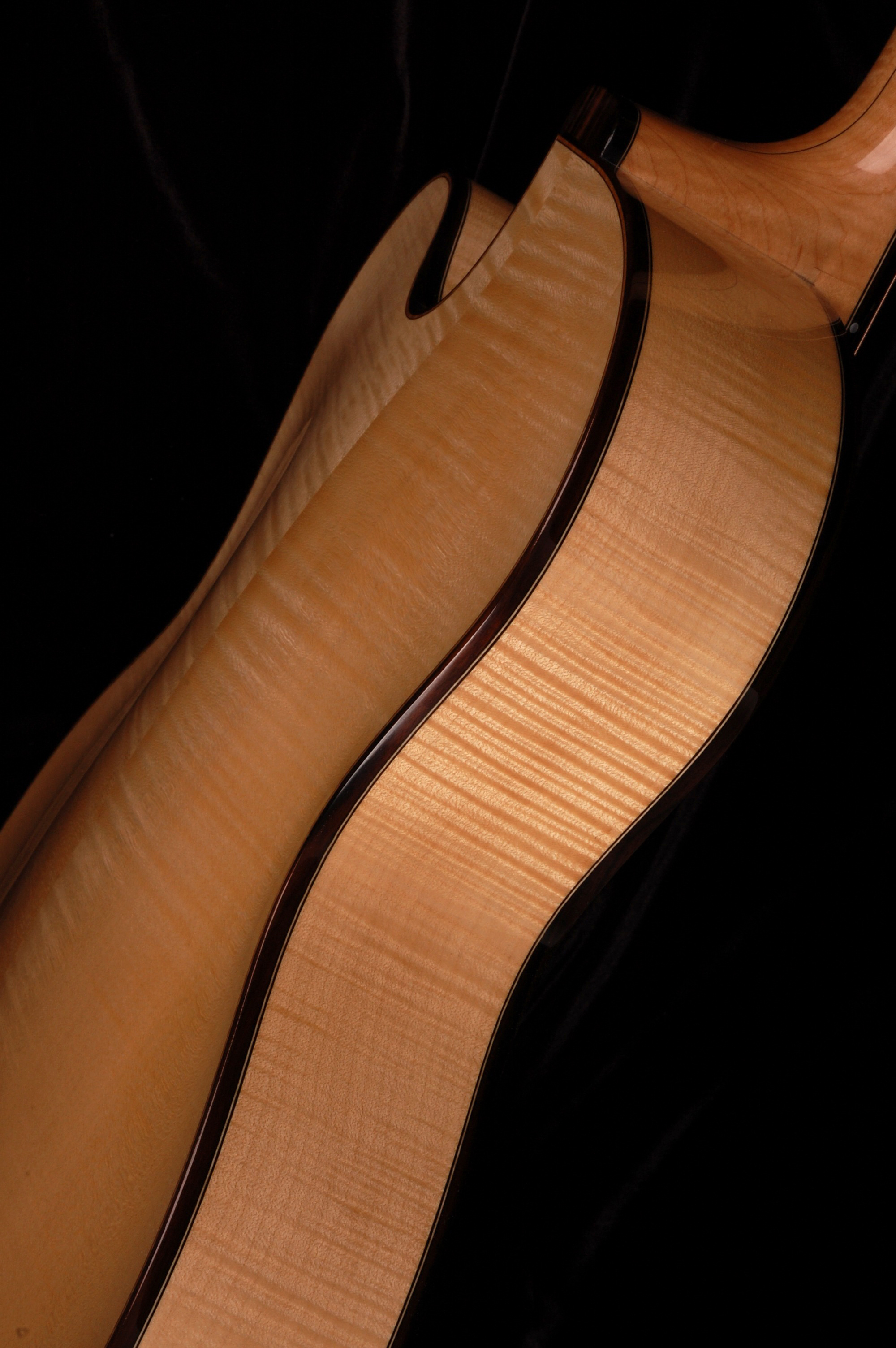

Back, Sides, and Ebony Binding

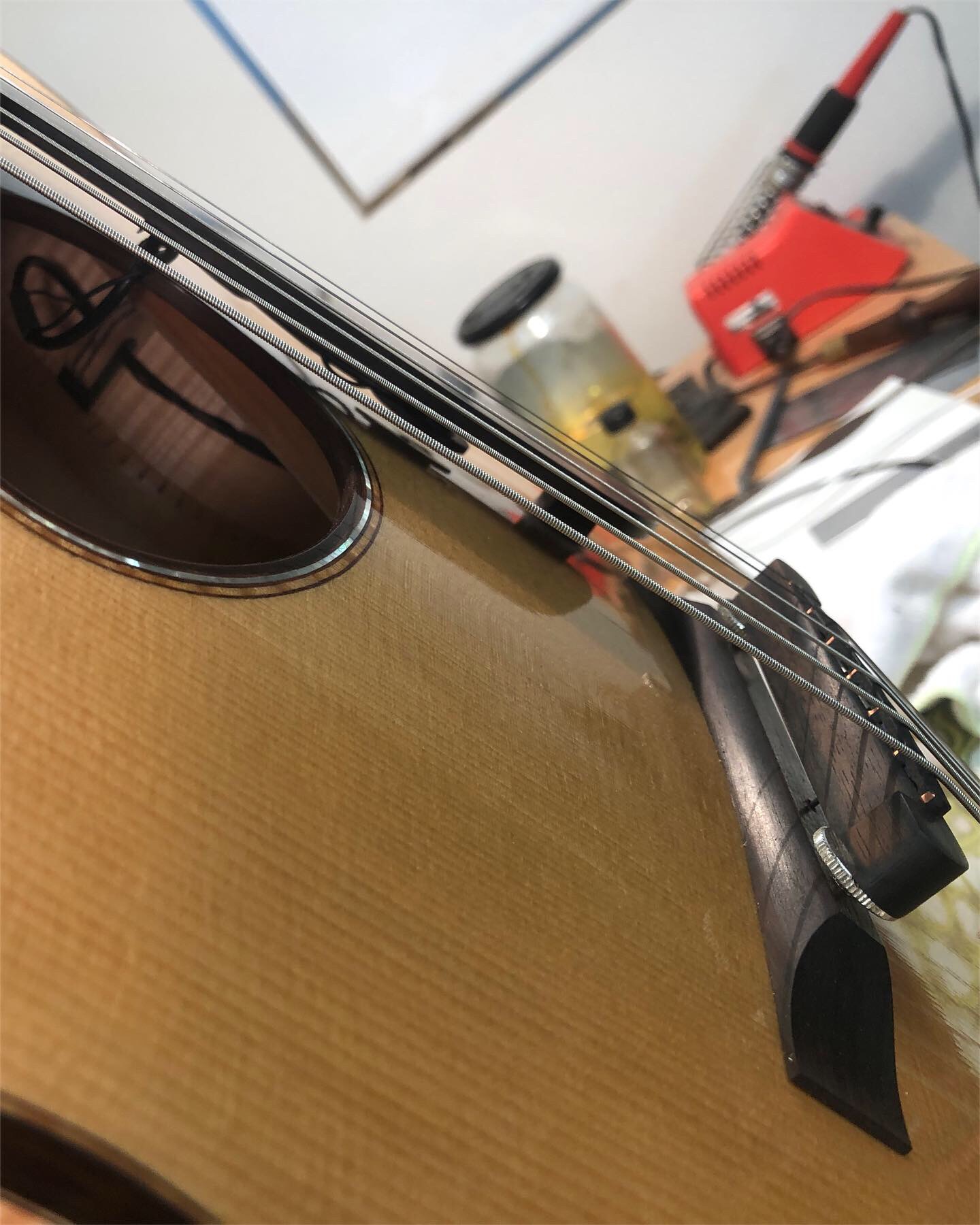

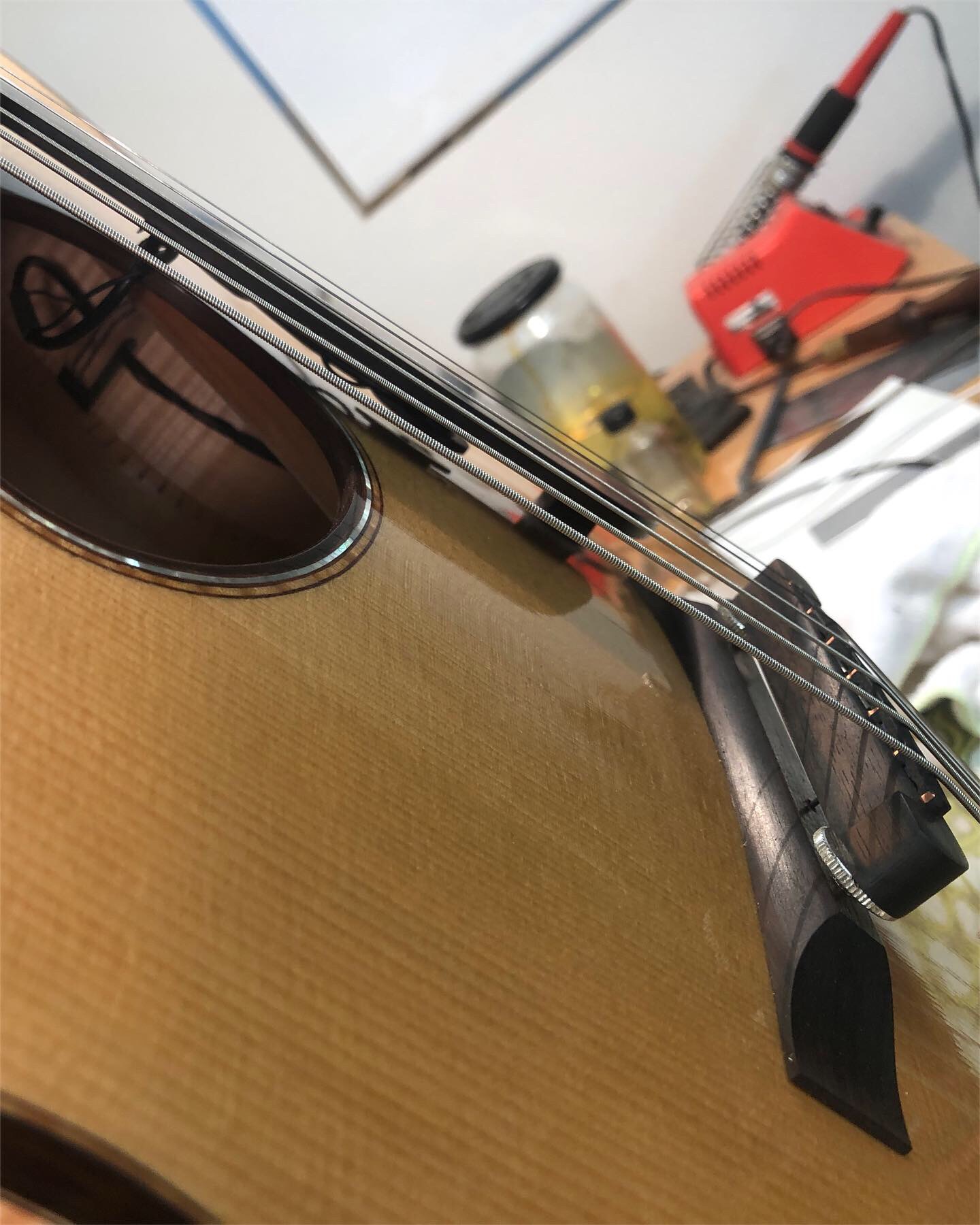

Barbera Saddle pickup with volume control, hidden and padded wires, and custom side wire clips.

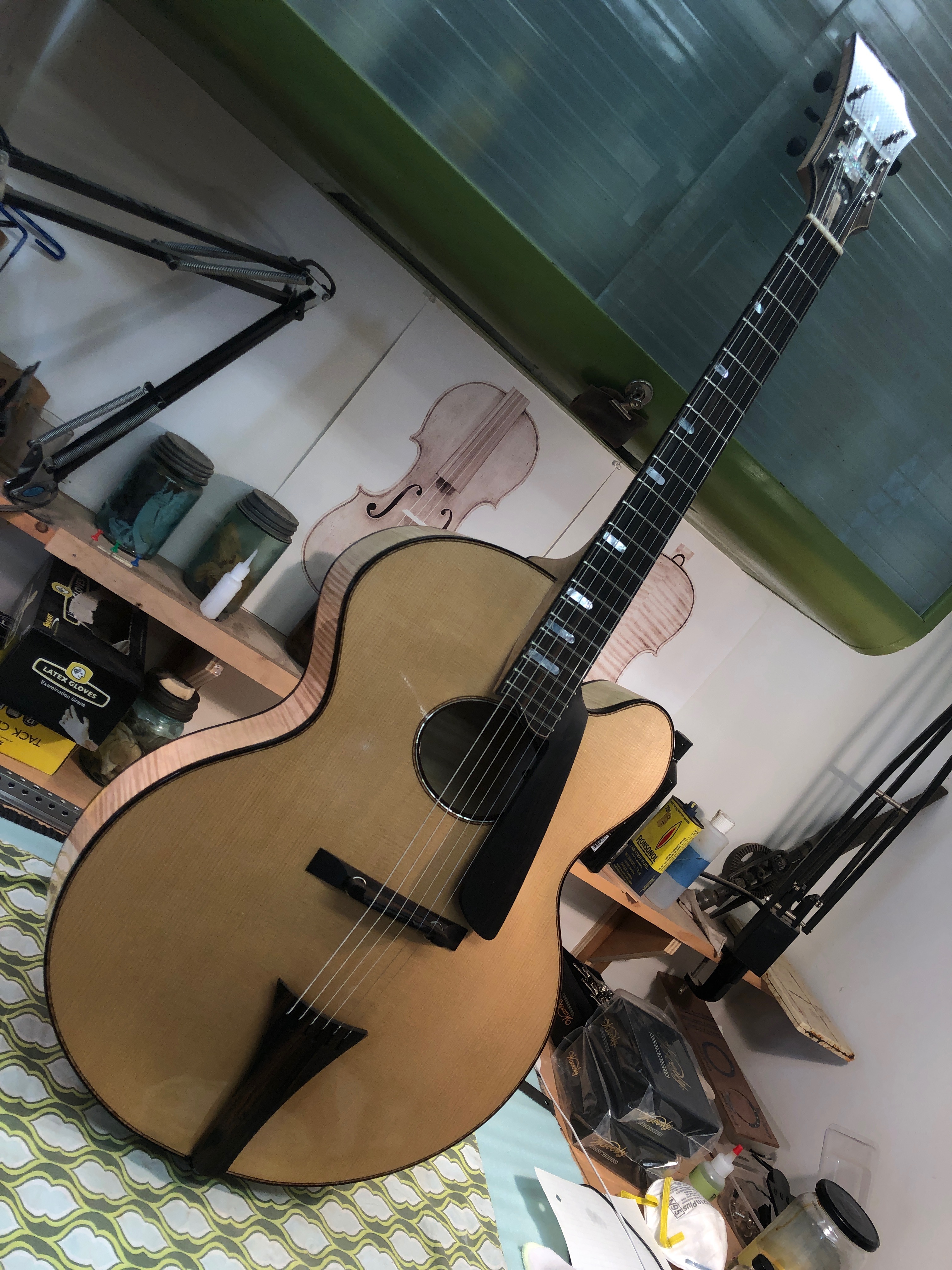

Picture with added ebony fingerrest
